Descripción
Caracteristicas:

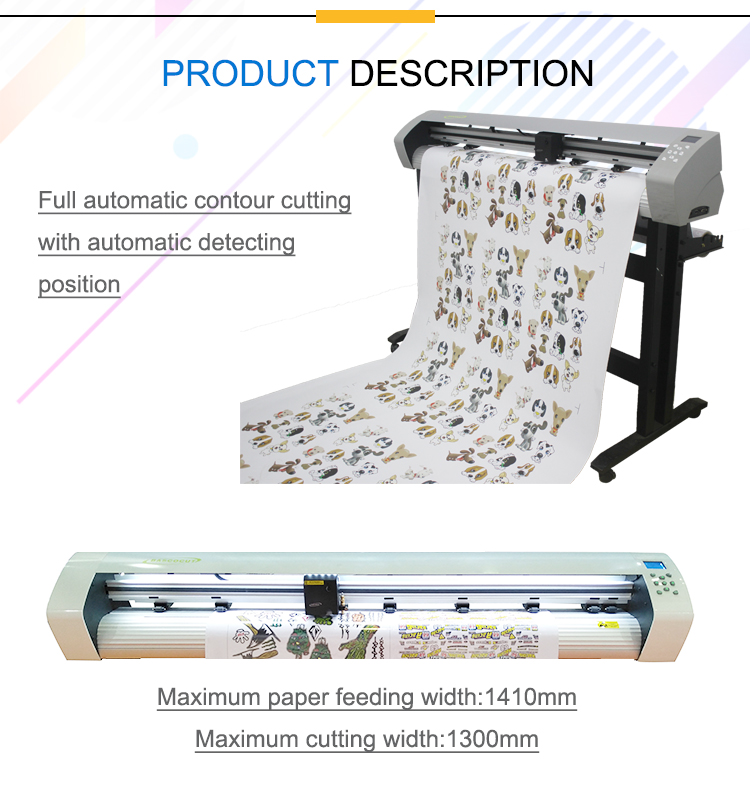

·Incluye funcion de corte automatica de contorno multi marca.
·Puede trabajar sin PC cuando se usa una interfase de disco U.
·Ejes de acero de alta presicion.
·El equipo puede repetir imagenes o palabras 0-500 veces (Funcion de repeticion)
·Ruido menor a 60 DB: no contribuye a la contaminacion auditiva
·Panel de control: 11 botones de membrana y pantalla touch 3.0 LCD, con 5 modos de iluminacion.
·Fuerza de corte grado industrial, facil de trabajar PVC rigido, carton y pelicula reflejante.
·Puede cortar palabras de 2mm.
·Memoria cache de 128MB, no tendra problema no importa cuan grande sea su trabajo.
Especificaciones:
| Model Name | C48A |
| Main board | 32-bit ARM7 CPU,128Mb, High-speed CACHE Memory |
| Function | Automatic contour cutting function with sensor |
| Driver | High speed,big power step motor, micro-step driver |
| Control panel | 9 silicon buttons, 128*64 industrial screen |
| Maximum input width | 1410mm |
| Maximum cutting width | 1250mm |
| Interfaces | USB/ U disk / Serial port USB |
| Plotter instruction | Compatible DM/PL, HP/GL DM/PL, HP/GL |
| Software | Signmaster |
| Cutting force | 10-1000g (digital adjustable) |
| Cutting speed | 900mm/s |
| Maximum cutting thickness | 0.8mm |
| Mechanical precision | 0.025mm |
| Type of plotter pen | All types diameter 11.4 mm plotter pen |
| Powre consumption | <80W |
| Media way | With Floor stand |
| Gross weight | 40kg |
| Package size | 1678x324x380mm |
